KR 3 Delta D1200 HM This four-axis delta robot from Kuka has an all-stainless-steel body and a 6.6-pound payload. While the KR3 Delta D1200 HM is designed for direct contact with food or medicines, it is a good choice for a wide range of uses, including pick-and place tasks, assembly, palletizing and packaging. It can also be used for kitting functions, where it removes parts moving down a conveyor to fill a tray, for example.
What’s new? The KR 3 Delta D1200 HM — the first delta robot from Kuka.

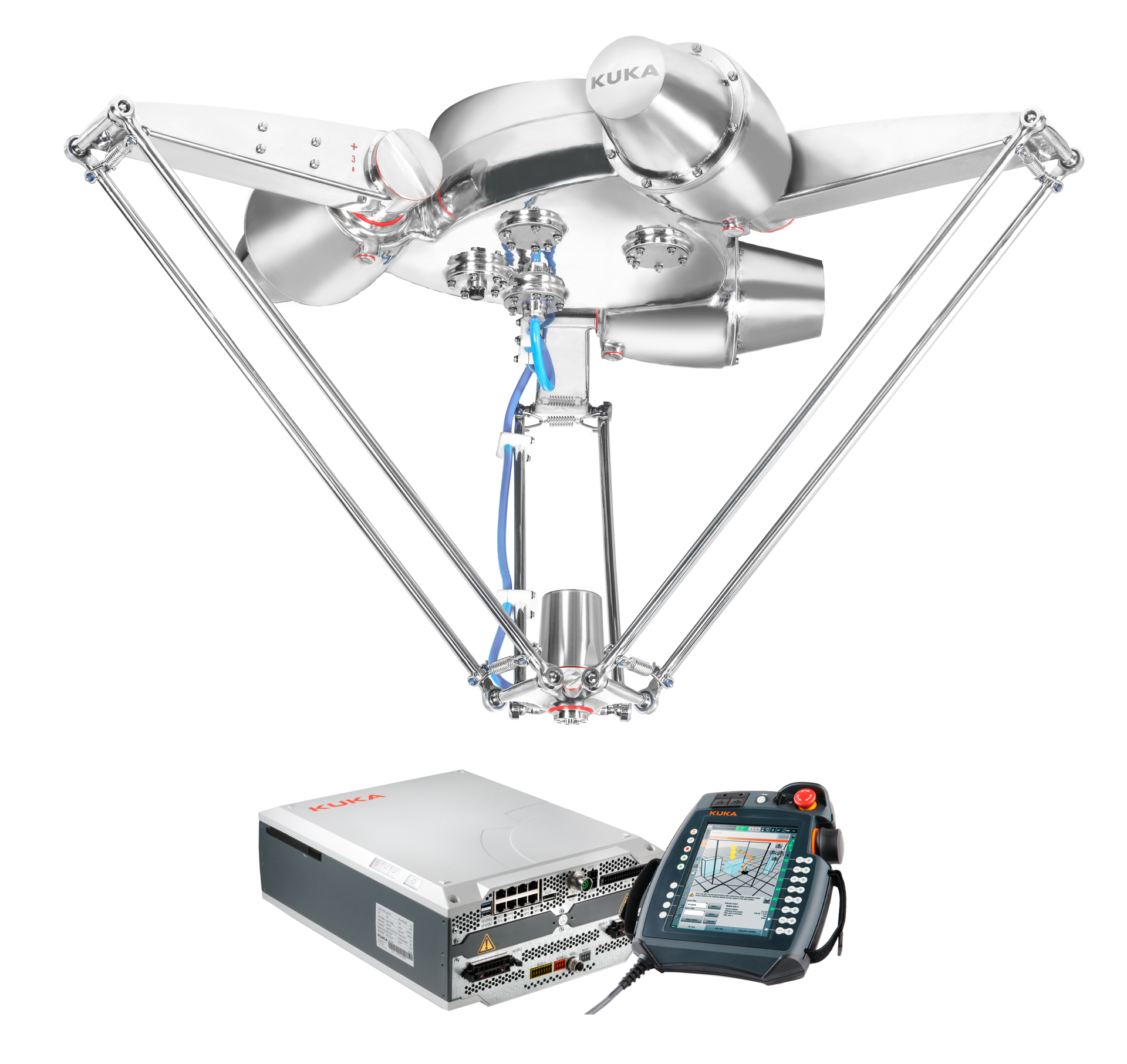

Benefits Low cost of operation. The robot has self-lubricating ball joints, needs no grease change for its entire life, and has low maintenance requirements. It comes with the KR C5 micro controller — Kuka’s latest generation — which takes up less space and consumes less power than other controllers. The robot is made for ceiling mounting, has a small footprint and with its IP 67 protection rating against moisture and dust, it is easy to safely clean and disinfect to meet strict hygiene standards.
Kuka Robotics Corp., Shelby Township, Mich., 800-459-6691, www.kuka.com
Vital statistics | |
Number of axes | 4 |
Payload (pounds) | 6.6 |
Maximum diameter of reach (feet) | 3.9 |
Maximum height (feet) | 0.8 |
Footprint (feet) | 4.9 by 4.9 |
